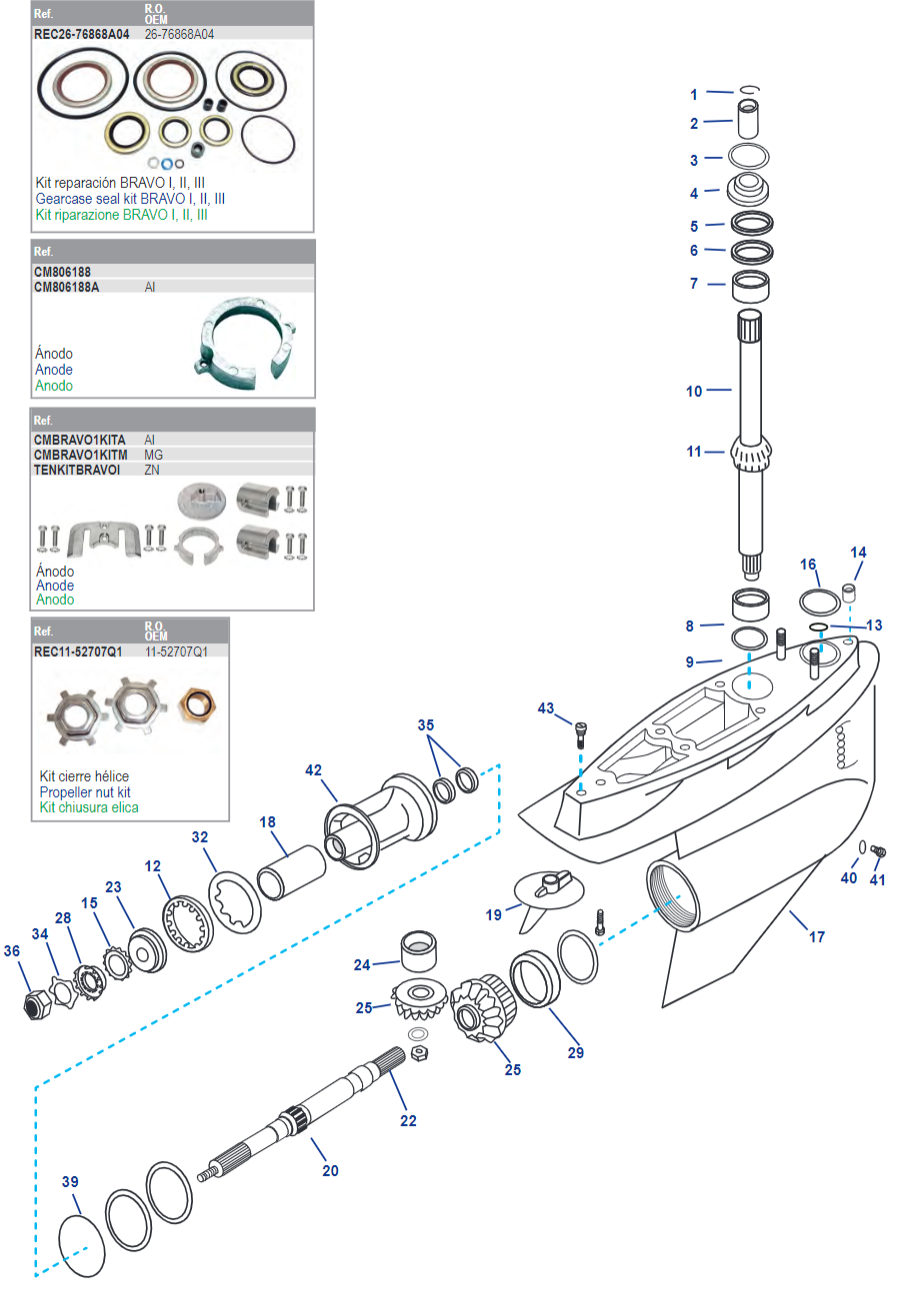

| No | Ref. | OEM (Link) | English Description | Deutsch |
|---|---|---|---|---|
| 1 | REC53-88242 | 53-88242 | CLIP | Clip |
| 2 | REC88243A3 | 88243A3 | COUPLING ASSEMBLY | Kupplung |
| 3 | REC308627 | 25-20826 | O-RING | O-Ring |
| 4 | REC23-8M8000506 | 23-92916 | SPACER | Distanzhülse |
| 5 | REC15-86749A1 | 15-86749A1 | SHIM KIT | Distanzscheiben-Satz |
| 6 | RM86739 | 14-86739 | WASHER | Unterlegscheibe |
| 7 | REC31-86748A1 | 31-86748A1 | BEARING | Lager |
| 8 | REC31-66668A1 | 66668A1 | BEARING | Lager |
| 9 | REC15-92914A1 | 15-92914A1 | SHIM KIT | Distanzscheiben-Satz |
| 10 | RM45-41629A2 | 41629A2 | DRIVESHAFT | Antriebswelle |
| 11 | REC31-86748A1 | 31-86748A1 | BEARING | Lager |
| 12 | REC8M2011027 | 8M2011027 | NUT | Mutter |
| 13 | REC25-33465 | 25-33465 | O-RING (2.362 x .103) | O-Ring (2.362 × 0.103) |
| 14 | REC26-36556 | 26-36556 | WATER TUBE Ø EXT. 12.7 mm | Wasserschlauch Ø 12,7 mm |
| 15 | REC26-805344 | 26-805344 | WATER TUBE Ø EXT. 15.88 mm | Wasserschlauch Ø 15,88 mm |
| 16 | REC13-423511 | 13-423511 | LOCK | Verschluss |
| 17 | REC26-455771 | 26-455771 | SEAL | Wellendichtring |
| 18 | RM1566-8866A17 | 8866A64 | LOWER CASE (1656-8863CZ) | Unteres Gehäuse |
| 19 | REC31-54042T | 31-54042T | BEARING | Lager |
| 20 | CM762145 | 7621405 | ZINC ANODE | Zinkanode |
| 20 | CM762145A | 7651405 | ALUMINIUM ANODE | Aluminiumanode |
| 21 | REC31-66668A1 | 31-66668A1 | BEARING | Lager |
| 22 | RM44-41630T | 44-41630T | PROPSHAFT | Propellerwelle |
| 23 | REC12-835467Q01 | 12-835467Q01 | SEPARATOR | Trennscheibe |
| 24 | REC31-86754T | 31-86754T | BEARING | Lager |
| 25 | RM43-14063A1 | 43-14063A1 | BEARING SET (15/19) | Lagersatz (15/19) |
| 26 | REC12-3121103 | 12-3121103 | WASHER | Unterlegscheibe |
| 27 | REC31-86752A1 | 31-86752A1 | BEARING | Lager |
| 28 | REC14-18323 | 14-18323 | WASHER | Unterlegscheibe |
| 29 | REC90508-ZW1-003 | 14-816629Q | LOCK WASHER | Sicherungsscheibe |
| 30 | REC26-76868 | 26-76868 | OIL SEAL | Wellendichtring |
| 31 | REC90301-ZW1-003 | 11-827614 | LOCK NUT | Sicherungsmutter |
| 32 | REC25-31534 | 25-31534 | O-RING | O-Ring |
| 33 | REC12-191833 | 12-191833 | GASKET | Dichtung |
| 34 | REC22-67892A05 | 8M0053889 | DRAIN PLUG | Ablassschraube |
| 35 | REC41641A8 | 41641A8 | BEARING LOWER | Unteres Lager |
| 36 | REC10-806327 | 10-806327 | SCREW | Schraube |
komplette Unterteile
| Ref. | OEM (Link) | Wassereinlässe |
|---|---|---|
| REC1656-8866A55 | 1656-8866A10 | 1 |
| REC1656-8866A63 | 1656-8866A15 | 2 |
